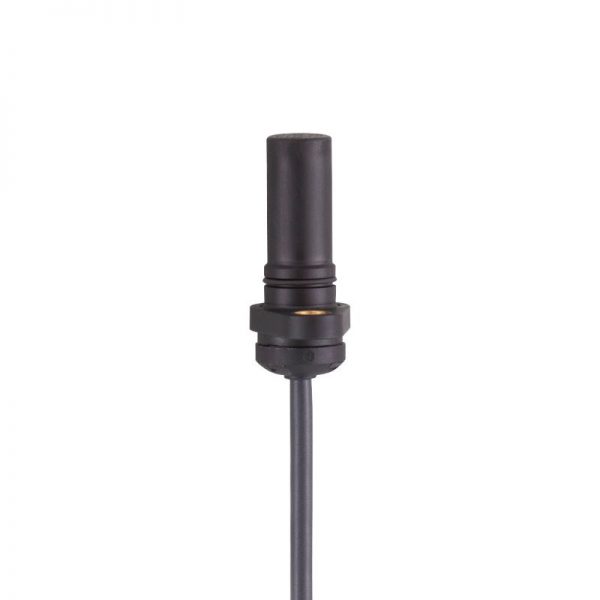

| Electrical data |
| Operating voltage [V] | 7…30 DC |
| Current consumption [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | no |
| Outputs |
| Electrical design | NPN |
| Permanent current rating of switching output DC [mA] | 50 |
| Switching frequency DC [Hz] | 1…15000 |
| Detection zone |
| Sensing range [mm] | 1.7 |
| Operating distance [mm] | 1 |
| Operating conditions |
| Ambient temperature [°C] | -32…140 |
| Protection | IP 65; IP 68; IP 69K |
| Tests / approvals |
| EMC | | EN 61000-4-2 | 4 kV CD / 8 kV AD | | EN 61000-4-3 | 10 V/m | | EN 61000-4-4 | 2 kV | | EN 61000-4-6 | 10 V | | EN 61000-4-8 | 30 A/m | |
| Shock resistance | | DIN EN 60068-2-27 | 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes | |
| Salt spray test | | EN 60068/2-11 | 96 h 5 % NaCl bei 25 °C | |
| Mechanical data |
| Weight [g] | 83 |
| Dimensions [mm] | Ø 15 / L = 50 |
| Materials | socket: brass; housing: PA; O-ring: FKM |
| Tightening torque [Nm] | 7 |
| Toothed wheel module [mm] | 1.25 |
| Remarks |
| Pack quantity | 1 pcs. |
| Electrical connection |
| Connection | Cable: 2 m, PUR; 4 x 0.34 mm² |
| Diagrams and graphs |
| switching signals |  | phase shift 90° +/- 20° | | pulse/pause ratio 50 % +/- 10 % | | Using toothed wheels with a different modulus has an influence on the sensing range and the phase position. | |
