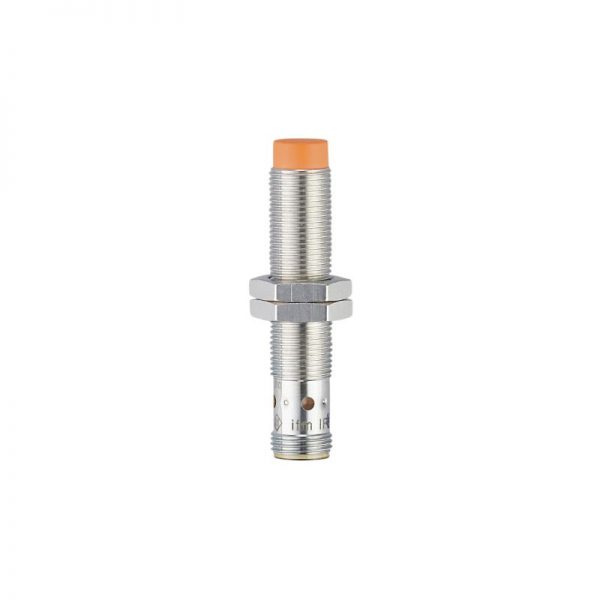

| Electrical data |
| Operating voltage [V] | 10…30 DC |
| Current consumption [mA] | < 10 |
| Protection class | II |
| Reverse polarity protection | yes |
| Outputs |
| Electrical design | PNP |
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 1500 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Detection zone |
| Sensing range [mm] | 4 |
| Real sensing range Sr [mm] | 4 ± 10 % |
| Operating distance [mm] | 0…3.24 |
| Accuracy / deviations |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
| Hysteresis [% of Sr] | 3…15 |
| Switch point drift [% of Sr] | -10…10 |
| Operating conditions |
| Ambient temperature [°C] | -25…80 |
| Protection | IP 67 |
| Tests / approvals |
| EMC | | EN 60947-5-2 | | | EN 55011 | class B | |
| MTTF [years] | 1874 |
| UL approval | | Ta | 0…40 °C | | Enclosure type | Type 1 | | voltage supply | Hazardous voltage | | File number UL | E174191 | |
| Mechanical data |
| Weight [g] | 27.2 |
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M12 x 1 / L = 60 |
| Thread designation | M12 x 1 |
| Materials | brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
| Displays / operating elements |
| Display | | switching status | 4 x LED, yellow | |
| Accessories |
| Accessories (supplied) | |
| Remarks |
| Pack quantity | 1 pcs. |
| Electrical connection – plug |
| Connection | Connector: 1 x M12; Contacts: gold-plated |
