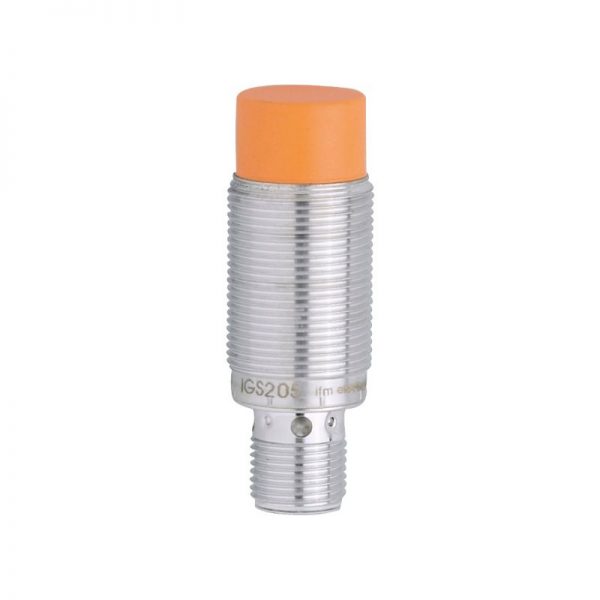

IFM-IGS207

IFM-IGS207

  • Robust metal housing for use in harsh industrial environments
  • Clearly visible indication of the switching status
  • Long sensing range for high uptime
  • Permanently legible laser type label
ENQUIRY DATASHEET
  • Description
  • Reviews (0)

Description

Electrical data
Operating voltage [V] 10…30 DC
Current consumption [mA] < 10
Protection class II
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally closed
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 300
Short-circuit protection yes
Overload protection yes
Detection zone
Sensing range [mm] 12
Real sensing range Sr [mm] 12 ± 10 %
Operating distance [mm] 0…9.72
Increased sensing range yes
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr] 3…15
Switch point drift [% of Sr] -10…10
Operating conditions
Ambient temperature [°C] -25…70
Protection IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
EN 55011 class B
MTTF [years] 1570
UL approval
Ta 0…40 °C
Enclosure type Type 1
voltage supply Hazardous voltage
UL Approval no. A003
File number UL E174191
Mechanical data
Weight [g] 41.6
Housing threaded type
Mounting non-flush mountable
Dimensions [mm] M18 x 1 / L = 50
Thread designation M18 x 1
Materials brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Displays / operating elements
Display
switching status 4 x LED, yellow
Accessories
Accessories (supplied)
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection – plug
Connection Connector: 1 x M12; Contacts: gold-plated
